48MC-SP-25

Mounting plate for the Schäfter+Kirchhoff multicube™ system

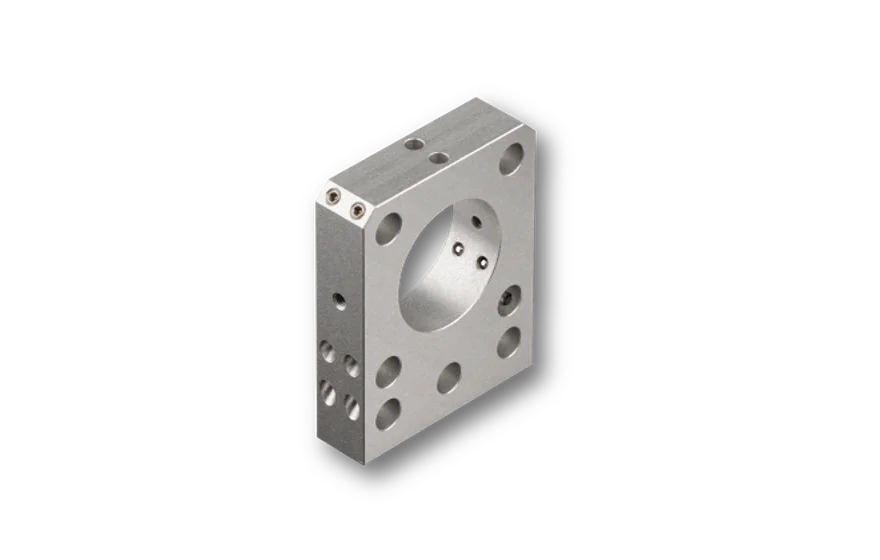

Mounting Plate 48MC-SP-25

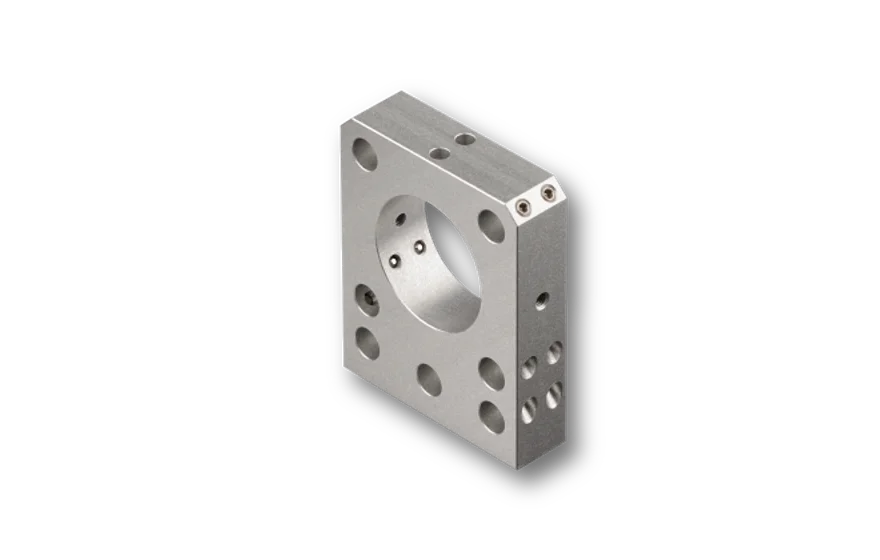

Mounting Plate 48MC-SP-25

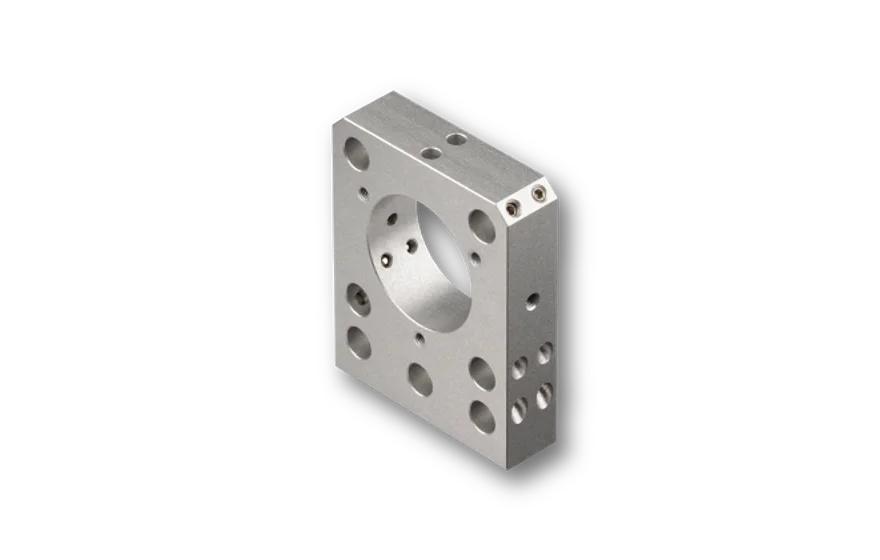

Mounting Plate 48MC-SP-25
Mounting Plate 48MC-SP-25
Mounting Plate 48MC-SP-25
Mounting Plate 48MC-SP-25
Mounting Plate 48MC-SP-25
Mounting Plate 48MC-SP-25

Features

Mounting plate for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 25 mm outer diameter.

Technical data

48MC-SP-25

Order Code
48MC-SP-25
Dimensions
42 x 53 x 12 mm
Fitting bore
Ø 25 mm
Material
Black anodized aluminum
Weight
46 g

FAQ

  • Compatability of the multicube system
    • Is my system compatible to established 30 mm cage systems or microbench systems?
      The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
    • Is my system compatible to established 60 mm cage systems?

      The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.

Accessories

CC-25-4
Clamp Collar for fiber collimators with diameter Ø 25/28 mm
