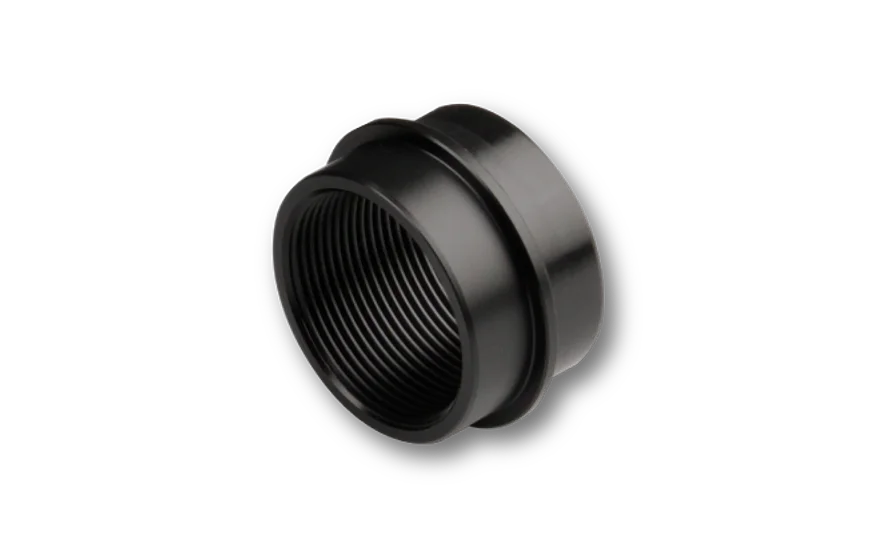

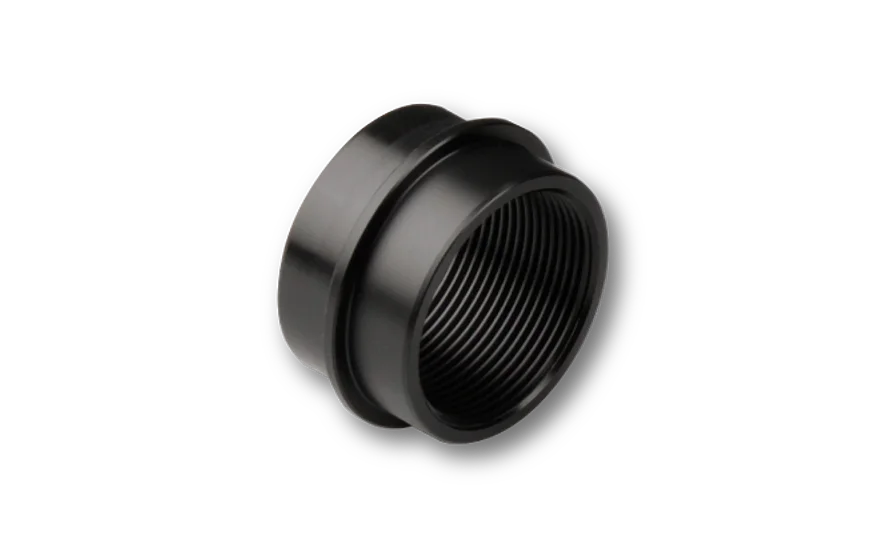

48S-19.5

Spacer for the Schäfter+Kirchhoff multicube™ system

48S-19.5
48S-19.5
48S-19.5
48S-19.5
48S-19.5
48S-19.5
48S-19.5
48S-19.5

Features

Spacer for the Schäfter+Kirchhoff multicube™ system.
  • Ø 19.5
  • Clear aperture Ø 14 mm
  • Black Delrin®

Technical data

48S-19.5

Order Code
48S-19.5
Outer Diameter
Ø 19.5 mm
Clear aperture
Ø 16.5 mm
Material
Delrin black
Weight
2 g
RoHS compliant

Dimensions (for a complete dimensional drawing please refer to the downloads section)

48S-19.5

Downloads

Dimensional drawing
980120101600.pdf (Dimensional drawing)
STEP model
980120101600.stp (STEP model)
STEP model
980120101600.stp (STEP model, for registered users only)
