Features
Collimator with elliptical Gaussian beam profile- Collimated beam diameter (1/e^2-level): 1.3 x 3.9 mm
- Beam divergence (1/e^2-level): 0.74 x 0.25 mrad
- Wavelength: 1550 nm
Description

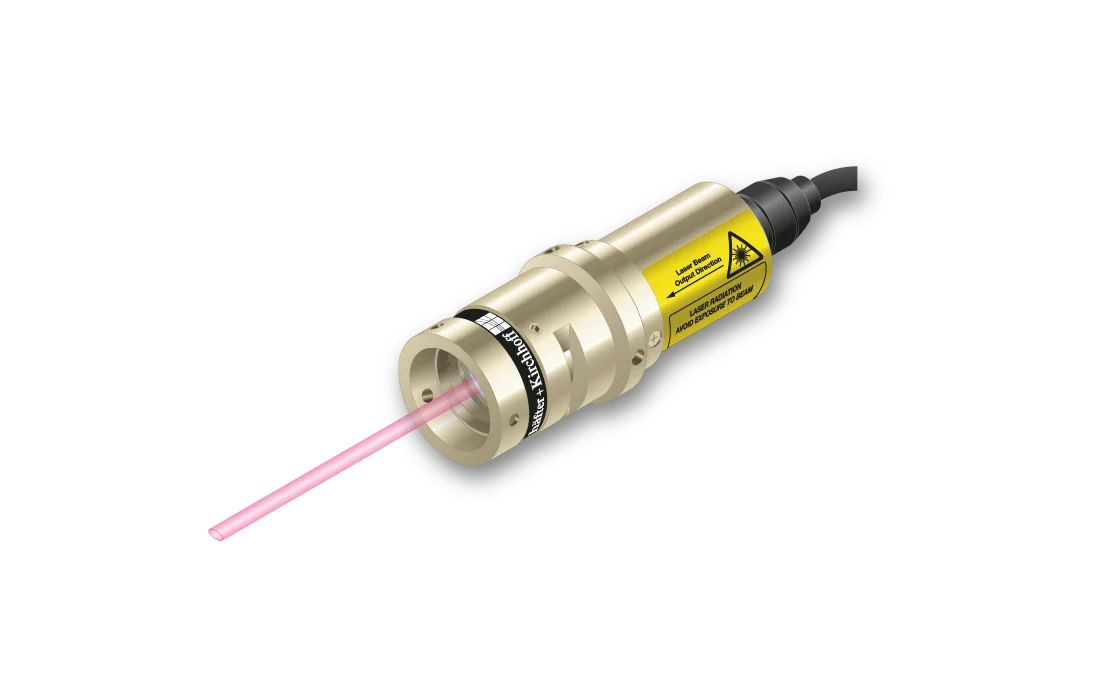

The Laser Diode Collimators type 55CM-1550-30-Q04-A4.5-P-6 transforms the divergent light of a laser diode into a collimated beam, while maintaining the Gaussian intensity distribution and the elliptical intensity profile.
The laser has integrated electronics type P with micro-controller for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

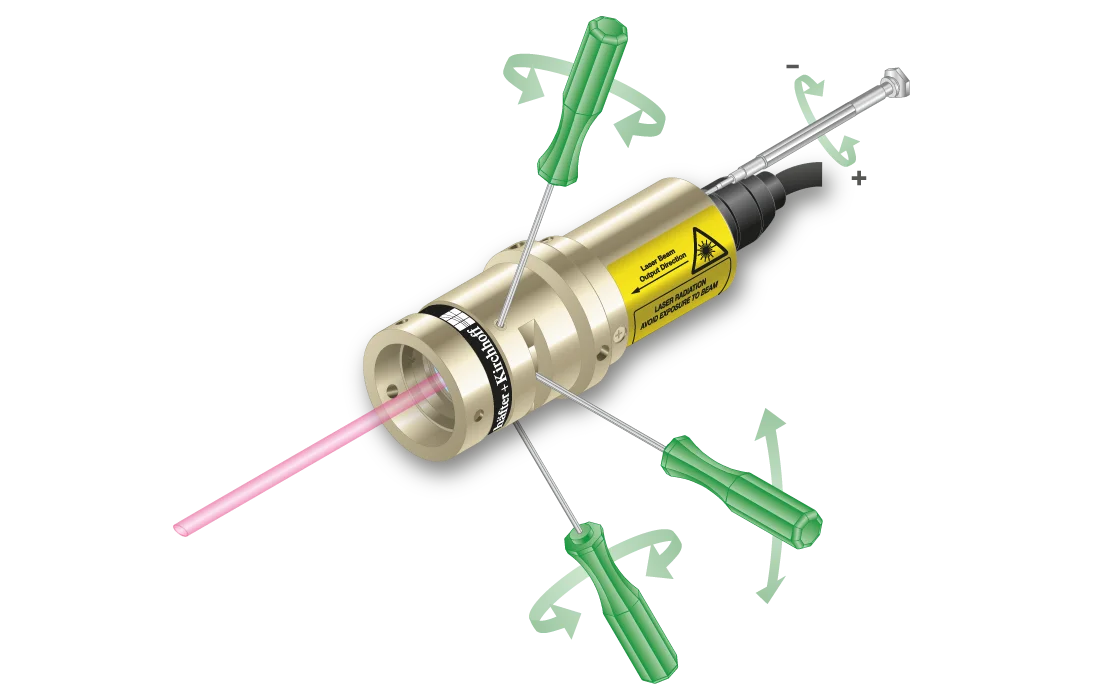

The collimation can be adjusted by using a hex key. Please note that this affects beam parameters like collimated beam diameter and beam divergence."
Technical data
55CM-1550-30-Q04-A4.5-P-6
Order Code
55CM-1550-30-Q04-A4.5-P-6
Laser type
CW Laser
Wavelength
1550 +20/-20 nm
Laser output power
30 mW
Laser safety class
3R
Collimated beam diameter (1/e^2-level)
1.3 x 3.9 mm
Clear aperture
13 mm
Truncated
no
Beam divergence (1/e^2-level)
0.74 x 0.25 mrad
Diameter laser module
25/28 mm
Module length
67.9 mm
Installation length
97.9 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.2 V
Max. current consumption
0.5 A
Working temperature
15 - 40 °C
Modulation inputs
Analog
TTL
Input resistance
9 kOhm
9 kOhm
Max. modulation frequency
0.01 kHz
250 kHz
Modulation delay ON/OFF
3000/3000 µs
0.5/0.2 µs
Rise / Fall time
40000/40000 µs
0.5/0.5 µs
