5PF-P-1300-L

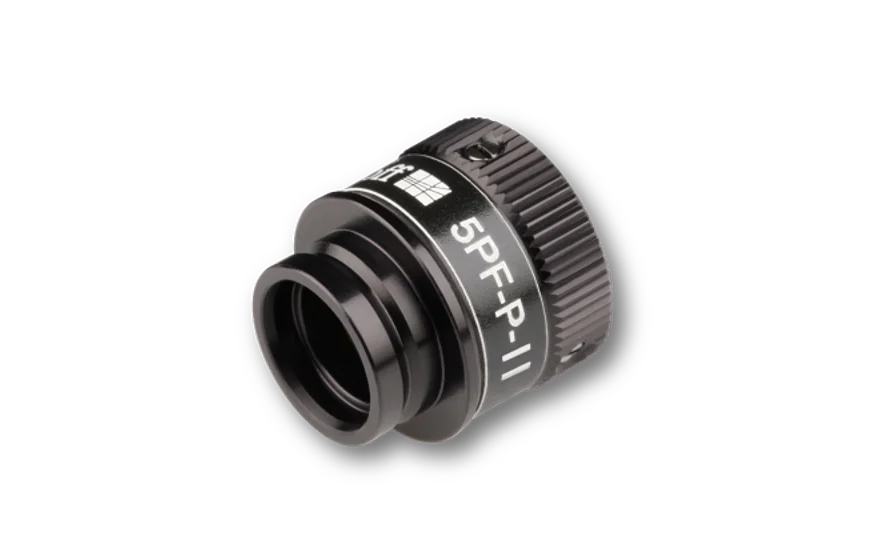

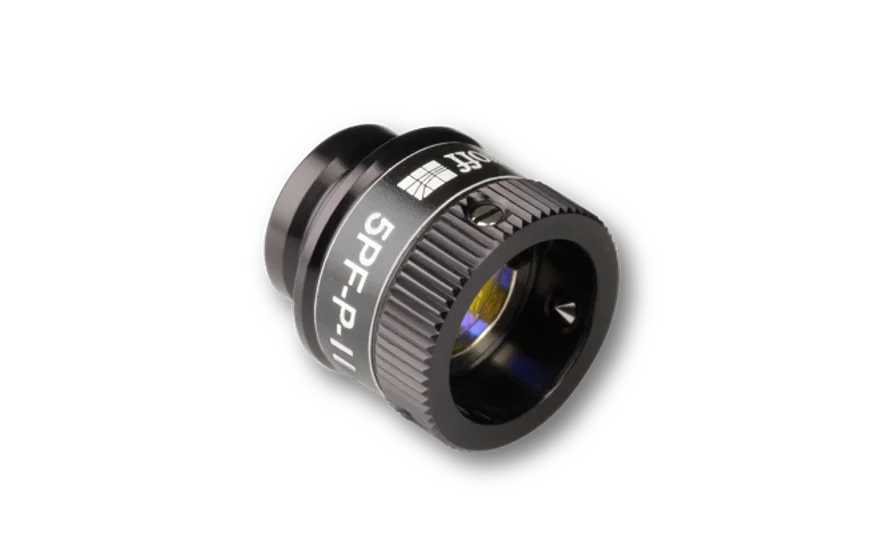

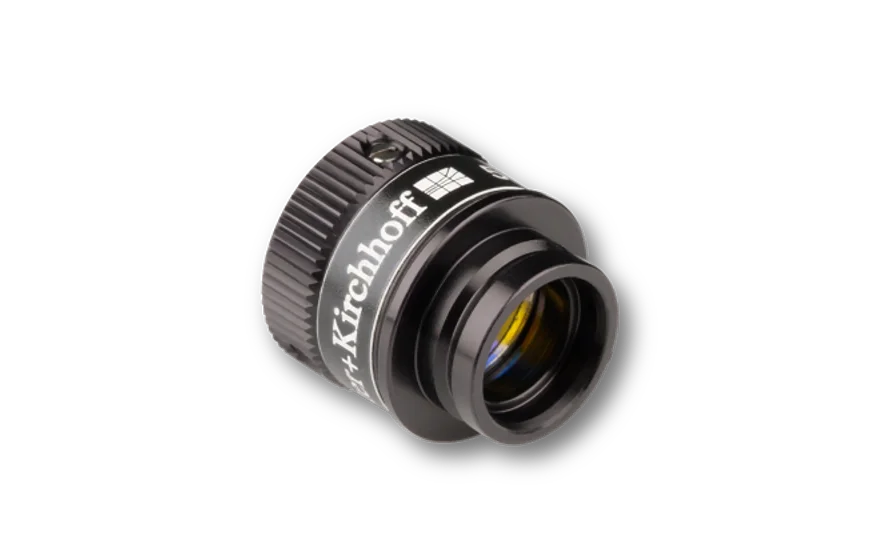

Dichroic polarization filter (long version)

5PF-P-xxx-L

Features

Polarization filter with system mount Ø 8 mm for attaching to 60FC Fiber Collimators (with outer diameter Ø 12 mm).

The filter transmits only the linear polarized component of the radiation.

Dichroic polarization filter. The filter is laminated to a glass substrate with an 1.5° inclined mounting in oder to avoid direct back-reflections
Polarization extinction ratio 10.000:1
Surface deviation < λ/4
Clear aperture: 5 mm
System mount: Ø 8 mm
AR Coating: 1280 - 1500 nm
Long-form housing with system mount Ø 8 mm for adding additional attachment optics

Technical data

5PF-P-1300-L

Order code

5PF-P-1300-L

Type

Dichroic polarization filter

Wavelength range

1280 - 1500 nm

Extinction

10.000:1

Transmission

> 84 - 93 %

AR coating

1280 - 1500 nm (residual reflectivity < 1.5 %)

Surface deviation

< λ/4

Clear aperture

Ø 5 mm

Inclined mount

1.5°

System mount

Ø 8 mm

Front fitting

System mount Ø 8 mm

Housing material

Nickel silver

Weight

5 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

Downloads

921120280200.pdf (Dimensional drawing)

921120280200.stp (STEP model)

921120280200.stp (STEP model, for registered users only)

Benefits of user registration include

Extended information for download including stepfiles, software or manuals
Direct download of user-specific downloads (e.g. user-specific software)
Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
Stored item list

Click here to register.
