Features
- Last Order
This product will be discontinued.
Description

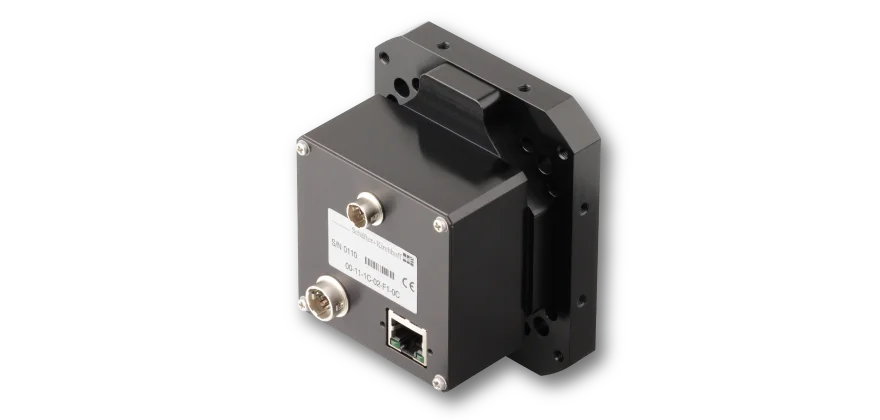

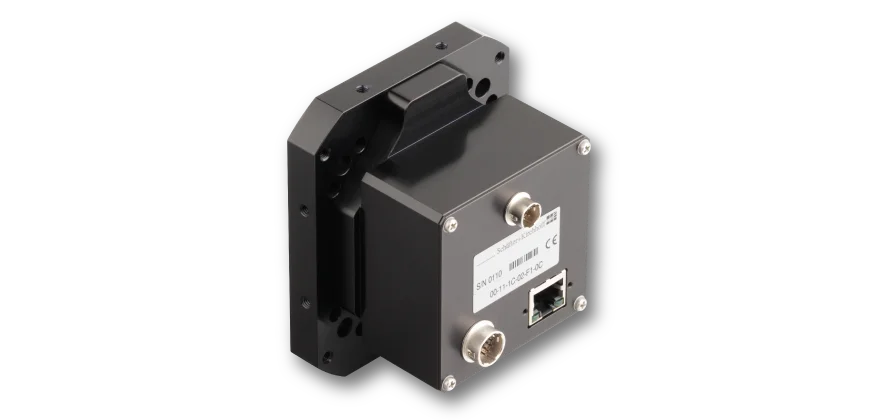

The monochrome SK7500VTF-4XB line scan camera is equipped with a 7496 pixel CCD sensor. The maximum line frequency is 8.26 kHz. The camera operates with 18 - 36 V DC supply voltage.
Features
All lenses show some vignetting as a function of the field angle. Hence, even with
homogeneous object illumination, the signal intensity of the image decreases with
increasing image height.
Shading correction (or flat field compensation) is used to compensate for lens vignetting
as well as for inhomogeneity in the illumination.
Synchronization
Line scan cameras have to be externally synchronized in order to obtain distortion-free images.
There are two different synchronization functions that can be applied together or individually:
1. Line Synchronization triggers each individual exposure of the sensor line by line, this
includes: Line Start, Exposure Active .
2. Frame Synchronization is the recording of a set of lines (frame) representing a two
dimensional image, including: Frame Sync and Threshold Trigger.
Lenses and Adapters
The lens or tube attachment is M72x0.75. Adapters are available for other
dimensions, see Accessories.
Software and SDK
SKLineScan is designed for start-up and control the line scan camera. It is free for use.
This product will be discontinued.
Technical data
SK7500VTF-4XB
Order Code
SK7500VTF-4XB
Sensor type
CCD monochrome sensor.
Pixels
7496
Pixel size:
7 x 7 µm^2
Active sensor length
52.5 mm
max. Pixel frequency
65 MHz
max. Line frequency
8.26 kHz
Shading correction
x
Spectral range
400 - 900 nm
Dynamic range
1:200 (rms)
min. Exposure time
0.121 ms
max. Exposure time
20 ms
Video signal
monochrome 8/12 Bit digital
Interface
GigE Vision
Power supply
18 - 36 V DC
Dimension
84 x 98 x 62 mm^3

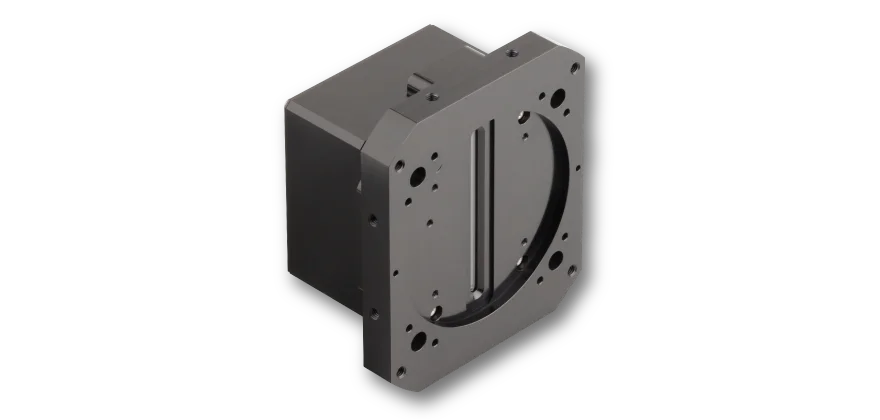

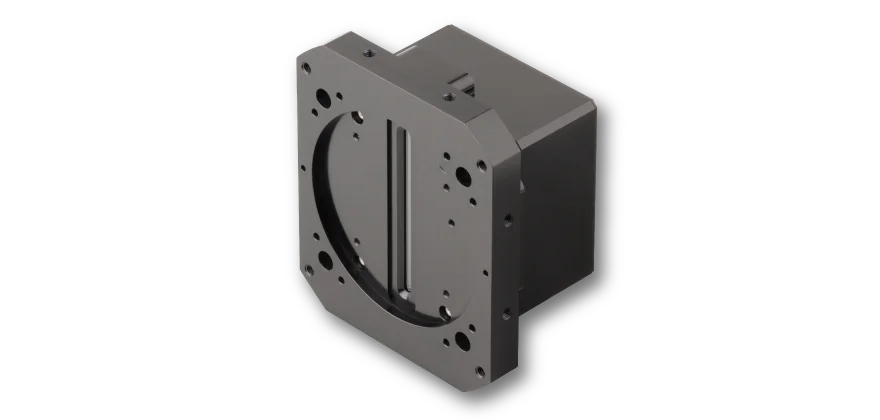

Case type
EG5
Mass
0.4 kg
Lens mount
M72x0.75
Flange diameter
0 x 0 mm
Flange focal length
8 mm
Operating temperature
+5 ... +45 °C
Dimensions (for a complete dimensional drawing please refer to the downloads section)
This product will be discontinued.
