Half-wave plates 5WP-2 (low-order)

allows polarization rotation of linearly polarized radiation

5WP-x-xxxx-S_01
5WP-x-xxxx-S_01
5WP-x-xxxx-L
5WP-x-xxxx-L

Features

The retardation optics type 5WP-2 are half-wave plates (also known as waveplates or retarder plates) that allow the polarization rotation of linearly polarized radiation.

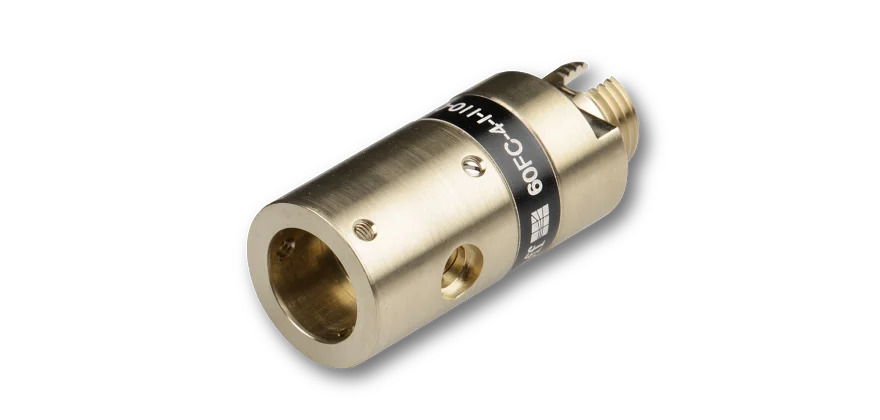

  • Attachment optics for fiber collimators type 60FC with outer diameter Ø 12 mm and focal lengths ≤ 20 mm.
  • Low-order half-wave optics with an 1.5° inclined mounting in oder to avoid direct back-reflections, dichroic optics on request
  • For various wavelengths UV-IR
  • Free rotation for best adjustment with positional locking using radially arranged screws.
  • Optional long-form housing (-L) with system mount Ø 8 mm for adding additional attachment optics
  • Adjustable using Schäfter+Kirchhoff Polarization Analyzer series SK010PA.
  • For collimating focal lengths f > 20 mm Schäfter+Kirchhoff offers fiber collimators of type 60FC-Q with integrated retardation optics.

Order Options

Order CodeSeriesRetardationOrderWavelengthElementSystem MountFront Fitting
5WP-2-301L-S5WPλ/2low301 nm-Ø 8 mm-
5WP-2-369L-S5WPλ/2low369 nm-Ø 8 mm-
5WP-2-399L-S5WPλ/2low399 nm-Ø 8 mm-
5WP-2-405L-S5WPλ/2low405 nm-Ø 8 mm-
5WP-2-442L-S5WPλ/2low442 nm-Ø 8 mm-
5WP-2-461L-S5WPλ/2low461 nmSrØ 8 mm-
5WP-2-488L-S5WPλ/2low488 nm-Ø 8 mm-
5WP-2-532L-S5WPλ/2low532 nm-Ø 8 mm-
5WP-2-556L-S5WPλ/2low556 nmYbØ 8 mm-
5WP-2-589L-S5WPλ/2low589 nmNaØ 8 mm-
5WP-2-626L-S5WPλ/2low626 nmDyØ 8 mm-
5WP-2-671L-S5WPλ/2low671 nmLiØ 8 mm-
5WP-2-679L-S5WPλ/2low679 nm Ø 8 mm-
5WP-2-689L-S5WPλ/2low689 nmSrØ 8 mm-
5WP-2-707L-S5WPλ/2low707 nm Ø 8 mm-
5WP-2-760L-S5WPλ/2low760 nmNaØ 8 mm-
5WP-2-767L-S5WPλ/2low767 nmKØ 8 mm-
5WP-2-780L-S5WPλ/2low780 nmRbØ 8 mm-
5WP-2-795L-S5WPλ/2low795 nm- Ø 8 mm-
5WP-2-811L-S5WPλ/2low811 nmKrØ 8 mm-
5WP-2-852L-S5WPλ/2low852 nmCsØ 8 mm-
5WP-2-1083L-S5WPλ/2low1083 nmHeØ 8 mm-
5WP-2-301L-L5WPλ/2low301 nm-Ø 8 mmØ 8 mm
5WP-2-369L-L5WPλ/2low369 nm-Ø 8 mmØ 8 mm
5WP-2-399L-L5WPλ/2low399 nm-Ø 8 mmØ 8 mm
5WP-2-405L-L5WPλ/2low405 nm-Ø 8 mmØ 8 mm
5WP-2-442L-L5WPλ/2low442 nm-Ø 8 mmØ 8 mm
5WP-2-461L-L5WPλ/2low461 nmSrØ 8 mmØ 8 mm
5WP-2-488L-L5WPλ/2low488 nm- Ø 8 mmØ 8 mm
5WP-2-532L-L5WPλ/2low532 nm-Ø 8 mmØ 8 mm
5WP-2-556L-L5WPλ/2low556 nmYbØ 8 mmØ 8 mm
5WP-2-589L-L5WPλ/2low589 nmNaØ 8 mmØ 8 mm
5WP-2-626L-L5WPλ/2low626 nmDyØ 8 mmØ 8 mm
5WP-2-671L-L5WPλ/2low671 nmLiØ 8 mmØ 8 mm
5WP-2-679L-L5WPλ/2low679 nm Ø 8 mmØ 8 mm
5WP-2-689L-L5WPλ/2low689 nmSrØ 8 mmØ 8 mm
5WP-2-707L-L5WPλ/2low707 nm Ø 8 mmØ 8 mm
5WP-2-760L-L5WPλ/2low760 nmNaØ 8 mmØ 8 mm
5WP-2-767L-L5WPλ/2low767 nmKØ 8 mmØ 8 mm
5WP-2-780L-L5WPλ/2low780 nmRbØ 8 mmØ 8 mm
5WP-2-795L-L5WPλ/2low795 nm-Ø 8 mmØ 8 mm
5WP-2-811L-L5WPλ/2low811 nmKrØ 8 mmØ 8 mm
5WP-2-852L-L5WPλ/2low852 nmCsØ 8 mmØ 8 mm
5WP-2-1083L-L5WPλ/2low1083 nmHeØ 8 mmØ 8 mm

Accessories

Polarization Analyzer SK010PA

Measurement tool for coupling into polarization-maintaining fiber cables

9D-12
Screwdriver WS 1.2
