Fiber Collimator series 60FC-...-LH

Long housing

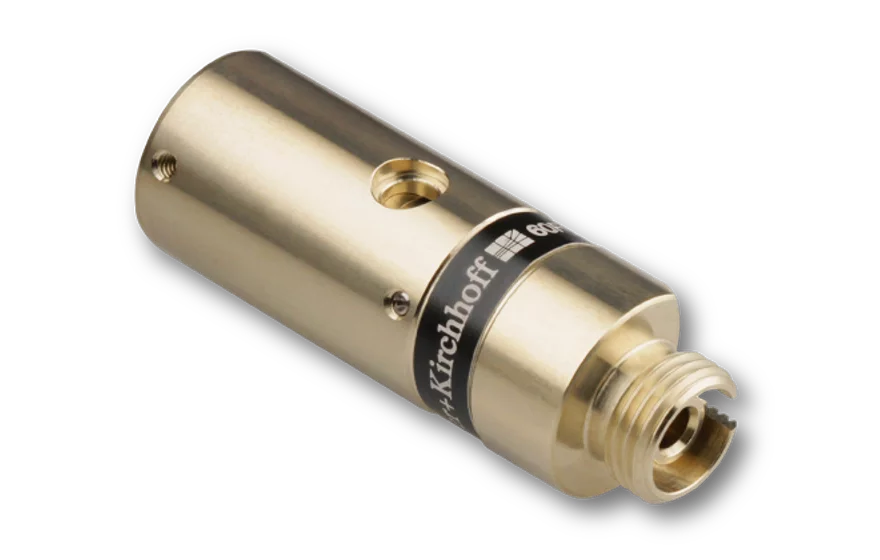

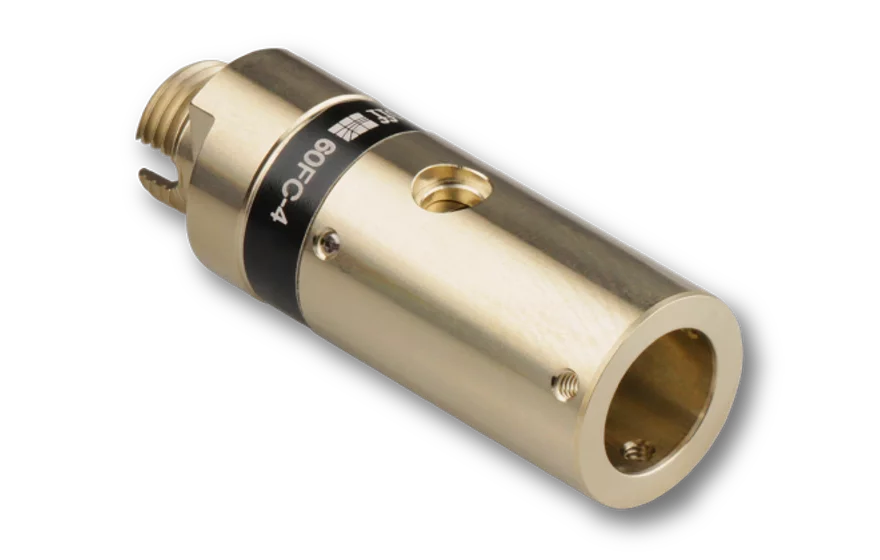

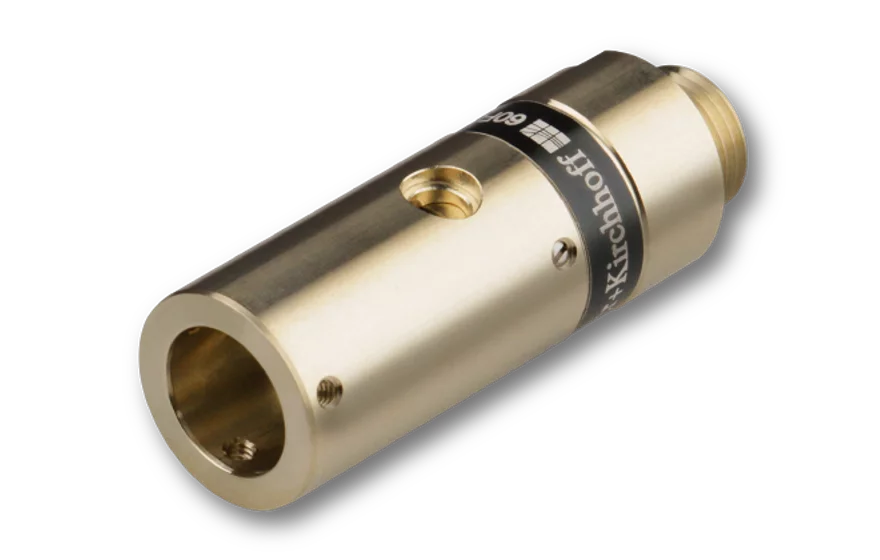

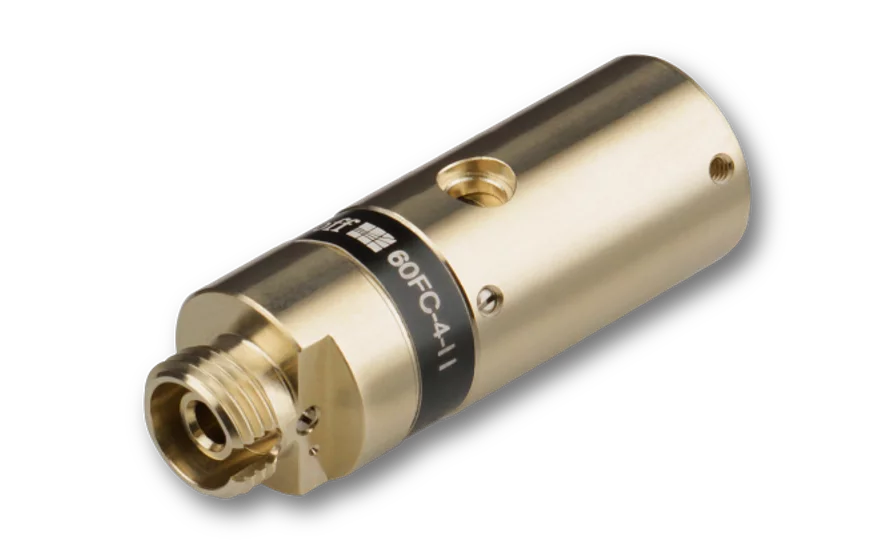

Fiber collimator 60FC-4

Representative product images. Individual product images are found on the individual product pages.

Features

Special version of the series 60FC fiber collimators with an extra long housing

Same choice of lenses such as the standard Series 60FC fiber collimators with focal lengths up to 12 mm
Long housing

Description

These fiber collimators are a specially modified version of the series 60FC fiber collimators. Unlike the standard version its housing is 7.2 mm longer.

Selecting the right Optics
Please use the product configurator for our fiber couplers with the pre-selection of the connector type to be FC APC.
Please name the need for thelonger housing in the request form.

Example
An example configuration can be found here.

Technotes

Mounting options for Ø 12mm Fiber Collimators (Series 60FC and 60FC-SF)
Mounting options for Fiber Collimators series 60FC and 60FC-SF

Downloads

970920520557.pdf (Dimensional drawing)

970920520557.stp (STEP model)

970920520557.stp (STEP model, for registered users only)

Benefits of user registration include

Extended information for download including stepfiles, software or manuals
Direct download of user-specific downloads (e.g. user-specific software)
Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
Stored item list

Click here to register.

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.

Overview

Lens Code	A1.45	A1.5	A2	A2.7	A3.1	M3.1	A4	M4	A4.5	A4.5S	M5	M6	A6.2	A6.2S	M6.2	A7.5	M7.5	A8	M8	A9.6	M10	A11	M11	RGBV11	M12	M12NIR	A15	M15	A15	A18	M18	A22
Focal length f'	1.4	1.5	2.0	2.7	3.1	3.1	4.0	4.0	4.5	4.5	5.0	6.0	6.2	6.2	6.2	7.5	7.5	8.0	8.0	9.6	10.0	11.0	11.0	11.0	12.0	12.0	15.0	15.0	15.3	18.4	18.4	22.0
Numerical Apperture NA	0.55	0.5	0.5	0.65	0.68	0.27	0.58	0.21	0.5	0.41	0.25	0.22	0.4	0.3	0.2	0.3	0.3	0.31	0.23	0.3	0.21	0.25	0.23	0.18	0.23	0.23	0.16	0.19	0.16	0.15	0.18	0.13
Clear apert. max. [mm]	1.6	1.5	2.4	3.6	5	1.7	4.6	1.7	4.95	3.7	2.8	2.7	4.95	3.7	2.5	4.5	4.5	4.93	3.8	5.2	4.2	5.5	5.2	4	5.4	5.4	5	5.6	5	5.5	6.6	5.7
Correction - achrom.						X		X				X			X		X				X		X	X	X	X		X
350 - 700 nm	01	01	01	01	01		01			01				01		01				01		01							01	01
390 - 670 nm						51		33			33				33				33						33
400 - 700 nm																	01				01			47				01
400 - 1000 nm								24																				24
420 - 700 nm												26									26							26
450 - 700 nm																					04
520 - 830 nm																							18
600 - 1050 nm			02													02				02									02
600 - 1100 nm				02	02		02			02				02								02								02
630 - 980 nm																									10	10
630 - 1080 nm											10								10												10
650 - 1150 nm									07				07					07
650 - 1050 nm																					02							02
750 - 1550 nm																									37			37
980 - 1550 nm											08								08						08						08
1050 - 1550 nm	03		03	03	03		03			03						03				03									03	03		03
1050 - 1620 nm																					03
1050 - 1650 nm														03								03
1300 - 1700 nm				45	45					45				45								45							45	45		45
1500 - 1780 nm																														22
1750 - 3000 nm							64
1750 - 2150 nm										09				09		09
2500 - 6000 nm							63
uncoated					00		00			00																	00
Lens Code	A1.45	A1.5	A2	A2.7	A3.1	M3.1	A4	M4	A4.5	A4.5S	M5	M6	A6.2	A6.2S	M6.2	A7.5	M7.5	A8	M8	A9.6	M10	A11	M11	RGBV11	M12	M12NIR	A15	M15	A15	A18	M18	A22
Focal length f'	1.4	1.5	2.0	2.7	3.1	3.1	4.0	4.0	4.5	4.5	5.0	6.0	6.2	6.2	6.2	7.5	7.5	8.0	8.0	9.6	10.0	11.0	11.0	11.0	12.0	12.0	15.0	15.0	15.3	18.4	18.4	22.0
Numerical Apperture NA	0.55	0.5	0.5	0.65	0.68	0.27	0.58	0.21	0.5	0.41	0.25	0.22	0.4	0.3	0.2	0.3	0.3	0.31	0.23	0.3	0.21	0.25	0.23	0.18	0.23	0.23	0.16	0.19	0.16	0.15	0.18	0.13
Clear apert. max. [mm]	1.6	1.5	2.4	3.6	5	1.7	4.6	1.7	4.95	3.7	2.8	2.7	4.95	3.7	2.5	4.5	4.5	4.93	3.8	5.2	4.2	5.5	5.2	4	5.4	5.4	5	5.6	5	5.5	6.6	5.7
Correction - achrom.						X		X				X			X		X				X		X	X	X	X		X
