Fiber Collimator series 60FC-...-V

Vacuum compatible

60FC-4-...-V

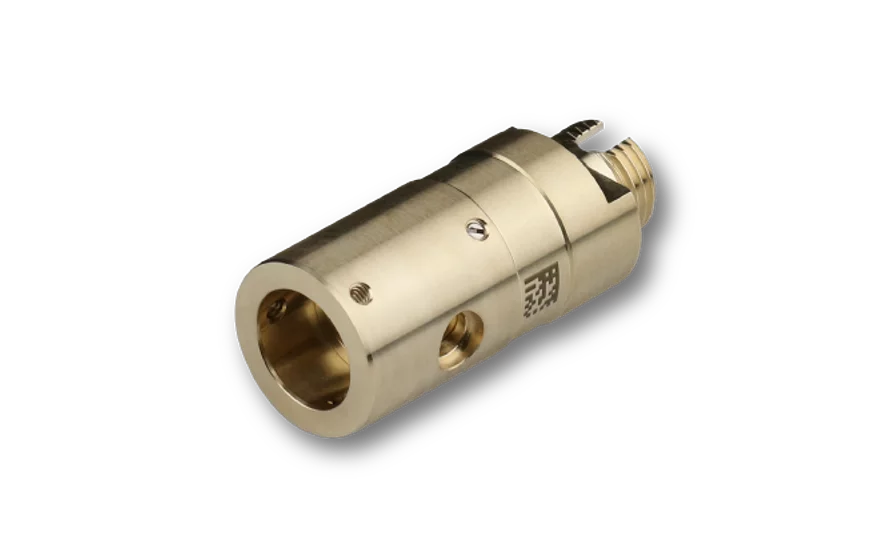

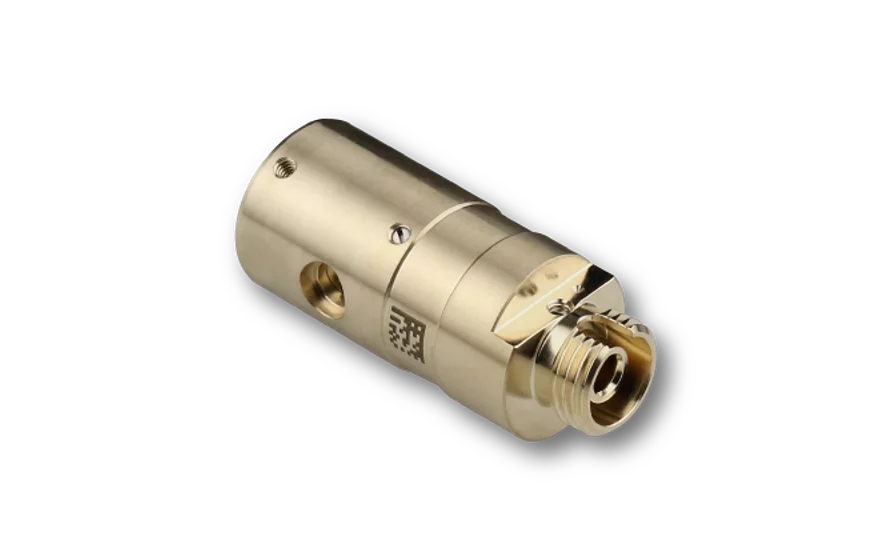

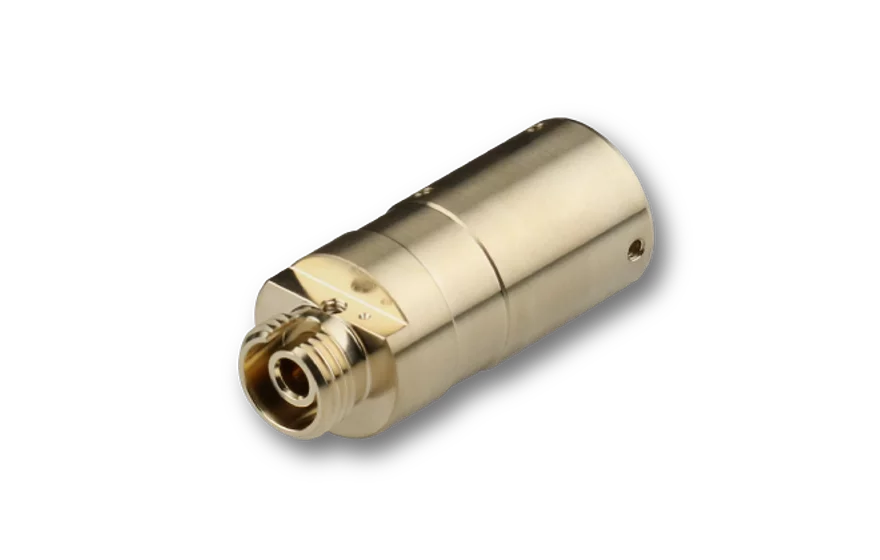

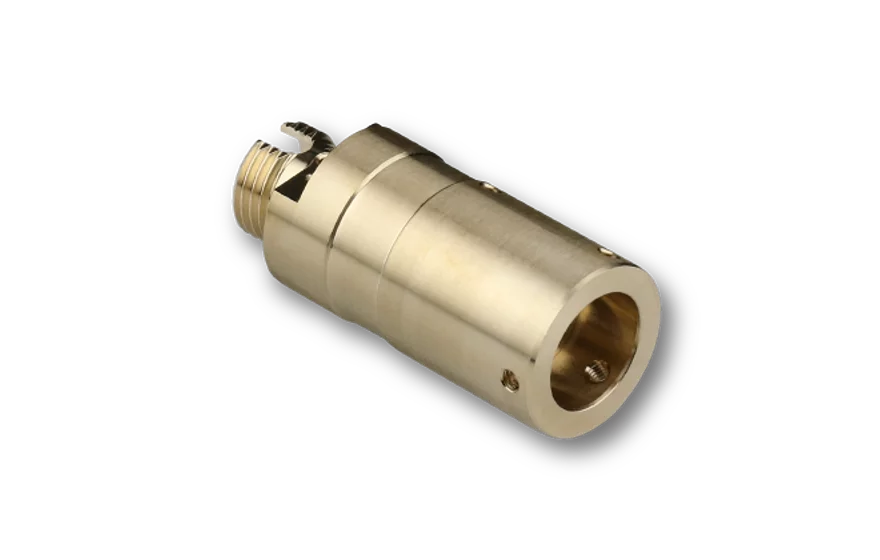

Representative product images. Individual product images are found on the individual product pages.

Features

Special, vacuum compatible version of the series 60FC fiber collimators.

Same choice of lenses such as the standard Series 60FC fiber collimators

Description

These fiber collimators are a specially modified version of the series 60FC fiber collimators. Unlike the standard version these fiber collimators do not have a label. The individual serial is rather engraved to the housing.

Selecting the right Optics
Depending on the opticy type these fiber collimators can be even suitable for UHV applications.
Please use the product configurator for our fiber couplers with the pre-selection of the connector type to be FC APC.
Please name the need for the vaccum compatibility

Example
An example configuration can be found here.

Overview

Lens Code	A2	A2.7	A3.1	M3.1	A4	M4	A4.5	A4.5S	M5	A6.2	A6.2S	M6.2	A7.5	M7.5	A8	M8	A9.6	M10	A11	M11	RGBV11	M12	M12NIR	A15	M15	A15	A18	M18	M20
Focal length f'	2.0	2.7	3.1	3.1	4.0	4.0	4.5	4.5	5.0	6.2	6.2	6.2	7.5	7.5	8.0	8.0	9.6	10.0	11.0	11.0	11.0	12.0	12.0	15.0	15.0	15.3	18.4	18.4	20.0
Numerical Apperture NA	0.5	0.65	0.68	0.27	0.58	0.21	0.5	0.41	0.25	0.4	0.3	0.2	0.3	0.3	0.31	0.23	0.3	0.21	0.25	0.23	0.18	0.23	0.23	0.16	0.19	0.16	0.15	0.18	0.17
Clear apert. max. [mm]	2.4	3.6	5	1.7	4.6	1.7	4.95	3.7	2.8	4.95	3.7	2.5	4.5	4.5	4.93	3.8	5.2	4.2	5.5	5.2	4	5.4	5.4	5	5.6	5	5.5	6.6	6.8
Correction - achrom.				X		X						X		X				X		X	X	X	X		X
350 - 650 nm																													48
350 - 700 nm	01	01	01		01			01			01	01	01				01		01							01	01
390 - 670 nm				51		33			33			33				33						33							33
400 - 1000 nm						24																			24
400 - 700 nm														01				01			47				01
420 - 700 nm																		26							26
450 - 700 nm																		04
520 - 830 nm																				18
600 - 1050 nm	02							02					02				02									02
600 - 1100 nm		02	02		02						02								02								02
630 - 980 nm																						10	10
630 - 1080 nm									10							10												10	10
650 - 1150 nm							07			07					07
650 - 1050 nm																		02							02
750 - 1550 nm																						37			37
980 - 1550 nm									08													08						08	08
1050 - 1550 nm	03	03	03		03			03			03		03				03		03							03	03
1050 - 1620 nm																		03
1300 - 1700 nm		45	45					45			45		45						45							45	45
1500 - 1780 nm																											22
1750 - 3000 nm					64
1750 - 2150 nm								09			09		09
2500 - 6000 nm					63
uncoated			00		00			00																00
Lens Code	A2	A2.7	A3.1	M3.1	A4	M4	A4.5	A4.5S	M5	A6.2	A6.2S	M6.2	A7.5	M7.5	A8	M8	A9.6	M10	A11	M11	RGBV11	M12	M12NIR	A15	M15	A15	A18	M18	M20
Focal length f'	2.0	2.7	3.1	3.1	4.0	4.0	4.5	4.5	5.0	6.2	6.2	6.2	7.5	7.5	8.0	8.0	9.6	10.0	11.0	11.0	11.0	12.0	12.0	15.0	15.0	15.3	18.4	18.4	20.0
Numerical Apperture NA	0.5	0.65	0.68	0.27	0.58	0.21	0.5	0.41	0.25	0.4	0.3	0.2	0.3	0.3	0.31	0.23	0.3	0.21	0.25	0.23	0.18	0.23	0.23	0.16	0.19	0.16	0.15	0.18	0.17
Clear apert. max. [mm]	2.4	3.6	5	1.7	4.6	1.7	4.95	3.7	2.8	4.95	3.7	2.5	4.5	4.5	4.93	3.8	5.2	4.2	5.5	5.2	4	5.4	5.4	5	5.6	5	5.5	6.6	6.8
Correction - achrom.				X		X						X		X				X		X	X	X	X		X
