Half-wave Plate 48WP-2 (low-order)

The half-wave plate rotates the polarization direction of a linearly polarized input beam

Multicube_48WP

Features

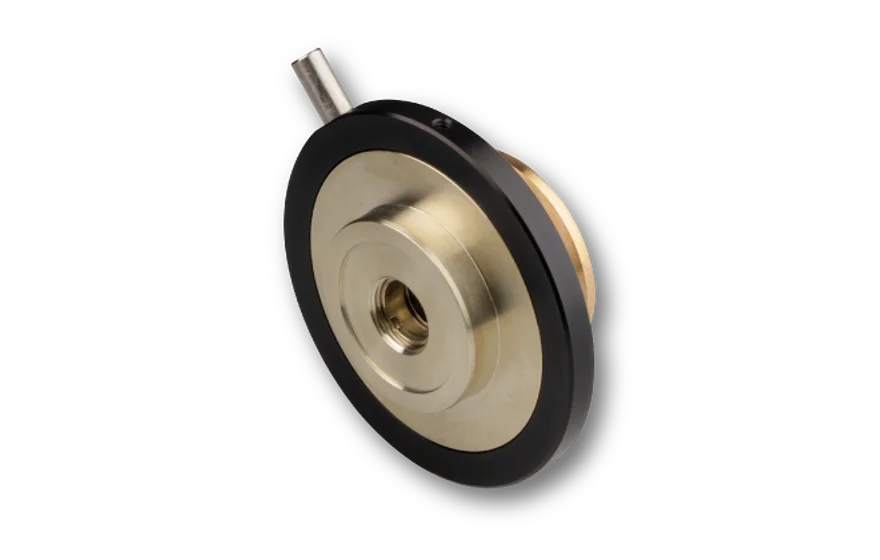

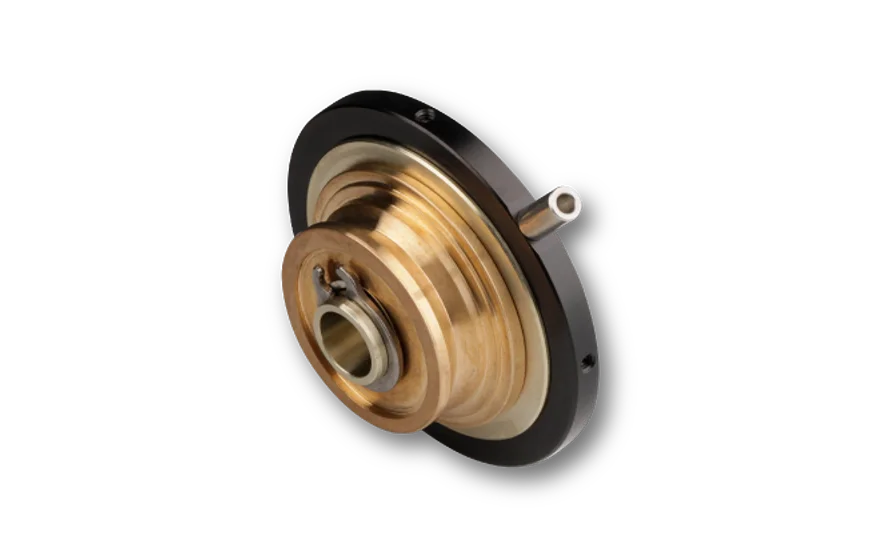

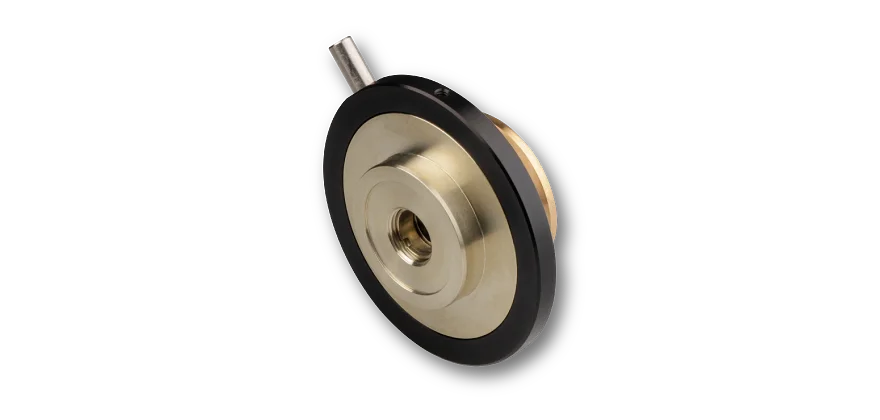

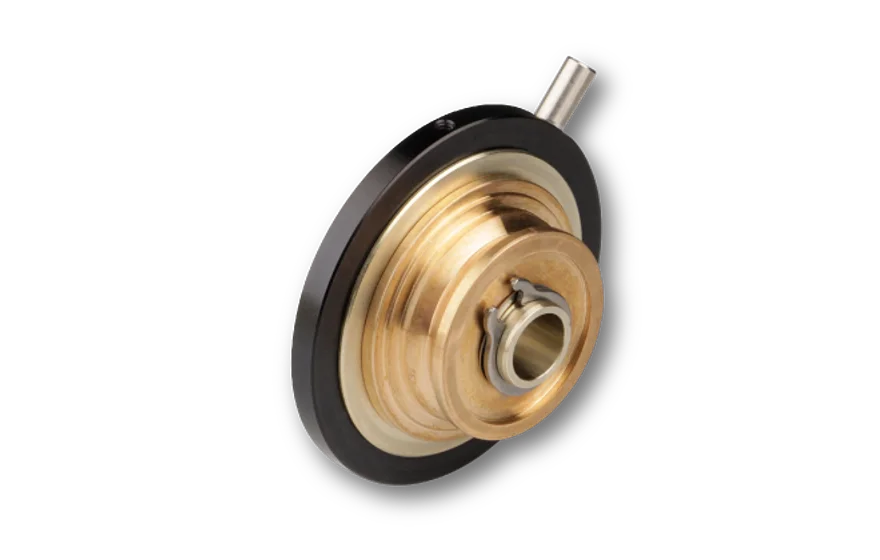

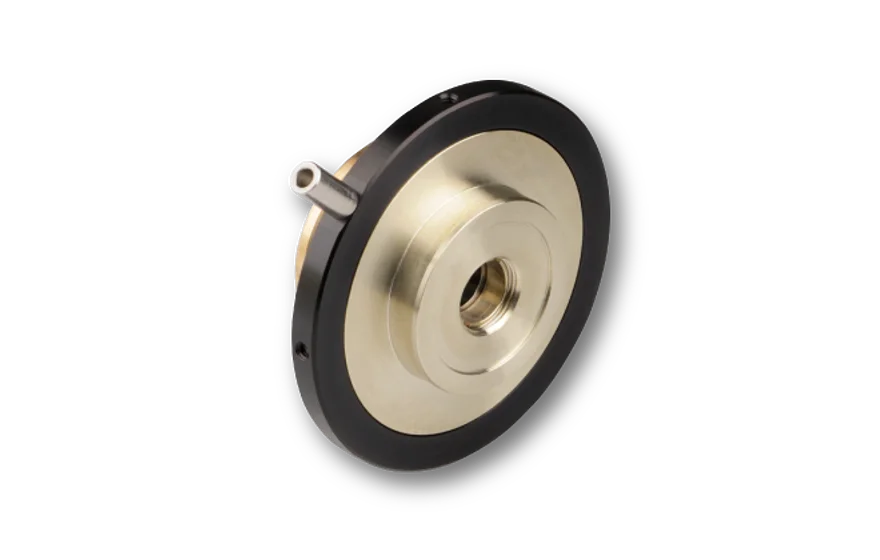

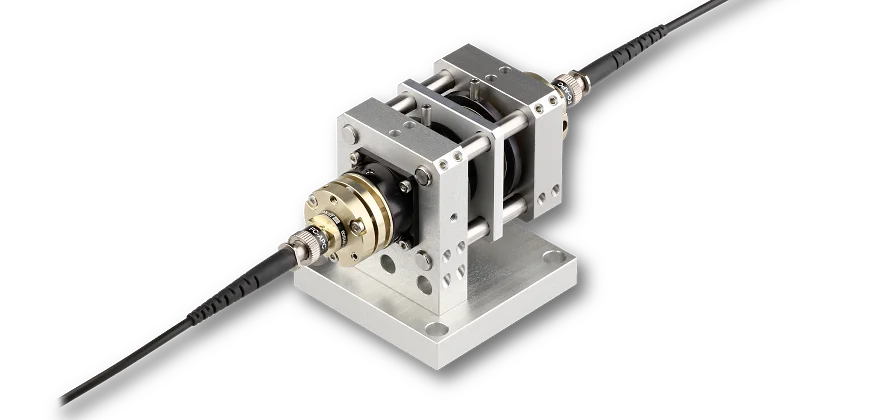

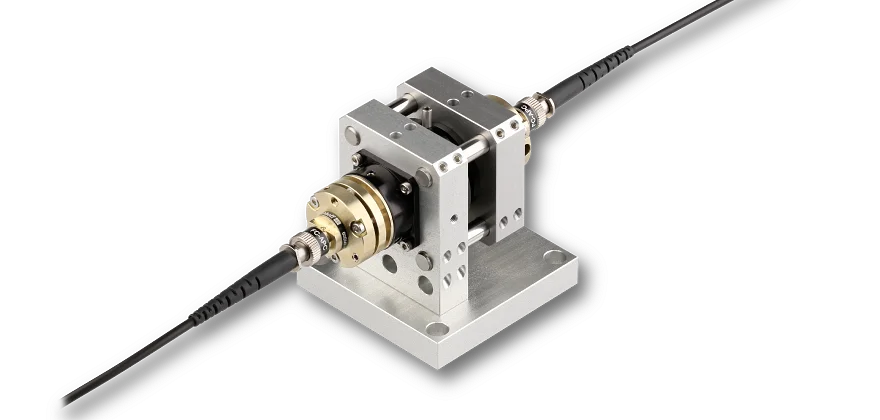

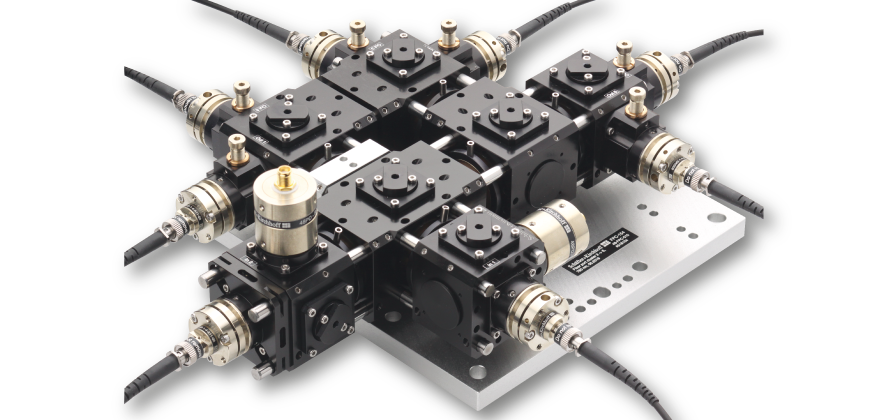

The retardation optics type 48WP-2 are half-wave plates (also known as waveplates or retarder plates) that allow the polarization rotation of linearly polarized radiation. They have a rotary mount and are designed to be integrated into the multicube system.

Quartz plate, low-order, dichroic optics on request
For various wavelengths UV-IR
Clear aperture 5 mm
In adjustable mount with self-locking tubular axis (0 - 360°)
Rotation around axis that is inclined 2° with respect to the optical axis. This avoids interference and back-reflection
System mount Ø 19.5 mm
Adjustable using Schäfter+Kirchhoff Polarization Analyzer series SK010PA.

Order options

Order Code	Series	Retardation	Order	Wavelength	Element	System Mount
48WP-2-CA-301L	48WP	λ/2	low	301 nm	-	Ø 19.5 mm
48WP-2-CA-369L	48WP	λ/2	low	369 nm	-	Ø 19.5 mm
48WP-2-CA-399L	48WP	λ/2	low	399 nm	-	Ø 19.5 mm
48WP-2-CA-405L	48WP	λ/2	low	405 nm	-	Ø 19.5 mm
48WP-2-CA-442L	48WP	λ/2	low	442 nm	-	Ø 19.5 mm
48WP-2-CA-461L	48WP	λ/2	low	461 nm	Sr	Ø 19.5 mm
48WP-2-CA-488L	48WP	λ/2	low	488 nm	-	Ø 19.5 mm
48WP-2-CA-493L	48WP	λ/2	low	493 nm	-	Ø 19.5 mm
48WP-2-CA-532L	48WP	λ/2	low	532 nm	-	Ø 19.5 mm
48WP-2-CA-556L	48WP	λ/2	low	556 nm	Yb	Ø 19.5 mm
48WP-2-CA-589L	48WP	λ/2	low	589 nm	Na	Ø 19.5 mm
48WP-2-CA-626L	48WP	λ/2	low	626 nm	Dy	Ø 19.5 mm
48WP-2-CA-650L	48WP	λ/2	low	650 nm		Ø 19.5 mm
48WP-2-CA-671L	48WP	λ/2	low	671 nm	Li	Ø 19.5 mm
48WP-2-CA-679L	48WP	λ/2	low	679 nm		Ø 19.5 mm
48WP-2-CA-689L	48WP	λ/2	low	689 nm	Sr	Ø 19.5 mm
48WP-2-CA-707L	48WP	λ/2	low	707 nm		Ø 19.5 mm
48WP-2-CA-760L	48WP	λ/2	low	760 nm	Na	Ø 19.5 mm
48WP-2-CA-767L	48WP	λ/2	low	767 nm	K	Ø 19.5 mm
48WP-2-CA-780L	48WP	λ/2	low	780 nm	Rb	Ø 19.5 mm
48WP-2-CA-795L	48WP	λ/2	low	795 nm	Rb	Ø 19.5 mm
48WP-2-CA-811L	48WP	λ/2	low	811 nm	Kr	Ø 19.5 mm
48WP-2-CA-852L	48WP	λ/2	low	852 nm	Cs	Ø 19.5 mm
48WP-2-CA-1083L	48WP	λ/2	low	1083 nm	He	Ø 19.5 mm
