Features

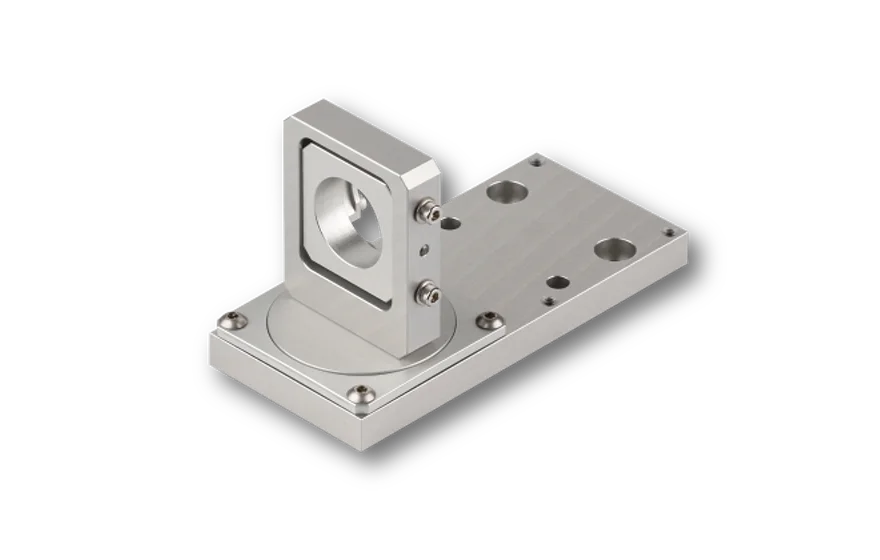

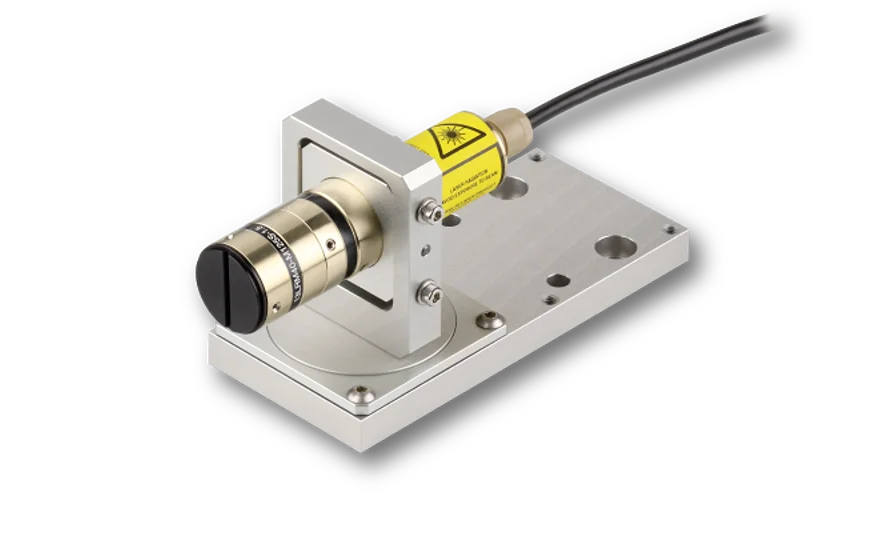

The Mounting Console of type 13MK-25-3D-F with flat base plate allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.

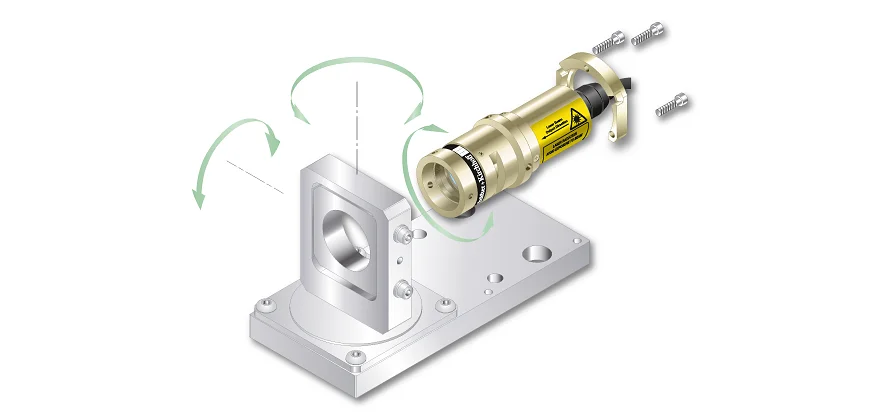

The Mounting Console is designed for all lasers with Ø 25/28 mm and provide 3 degrees of freedom:
  • Rotation (0 - 360°) around the optical axis
  • In-plane rotation (0 - 360°)
  • Tilt (inclination, ± 5°)

This product has been discontinued. Requests will be managed according to the residual stock. Contact us to discuss any specific need. Similar product:

13MK-25-3D-M6
13MK-25-3D-M6
Mounting Console with flat base plate
Compare

This product has been discontinued. Requests will be managed according to the residual stock. Contact us to discuss any specific need. Similar product: 13MK-25-3D-M6

Description

The Mounting Consoles of type 13MK-25-3D-F with flat base plate allow a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such away that the focussing and focus locking mechanism remain accessible. The Mounting Console provides 3 degrees of freedom:

  • Rotation (0 - 360°) around the optical axis
  • In-plane rotation (0 - 360°)
  • Tilt ± 5° (inclination)
The Mounting Console is designed for all lasers with Ø 25/28 mm. For Laser Line Generators with a fan angle, e.g. 13LR, 13LN or 5LM and 5LP the mounting console type 13MK-25-36-10-F might be sufficient.
13MK-25-3D-F

This product has been discontinued. Requests will be managed according to the residual stock. Contact us to discuss any specific need. Similar product: 13MK-25-3D-M6
