60FC-K-4-M11-18

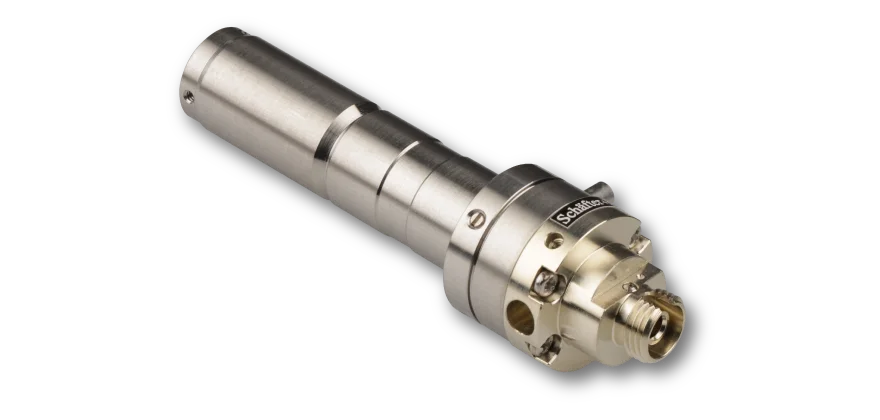

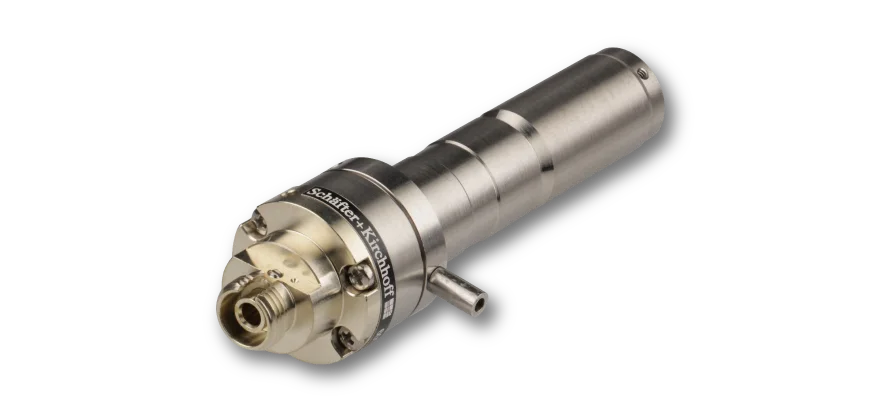

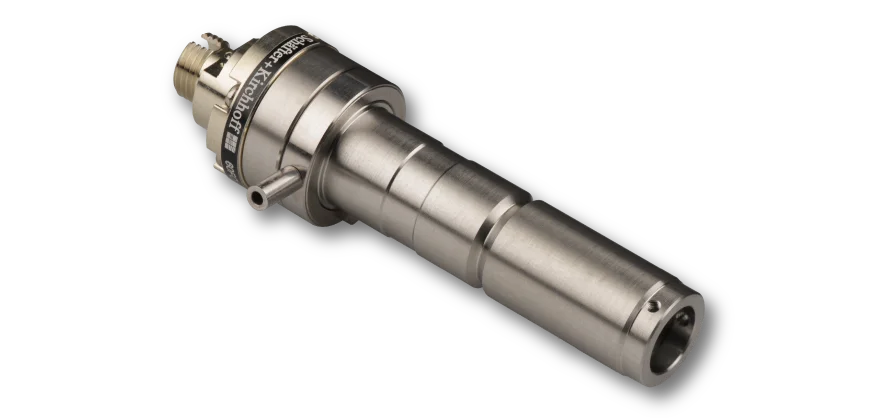

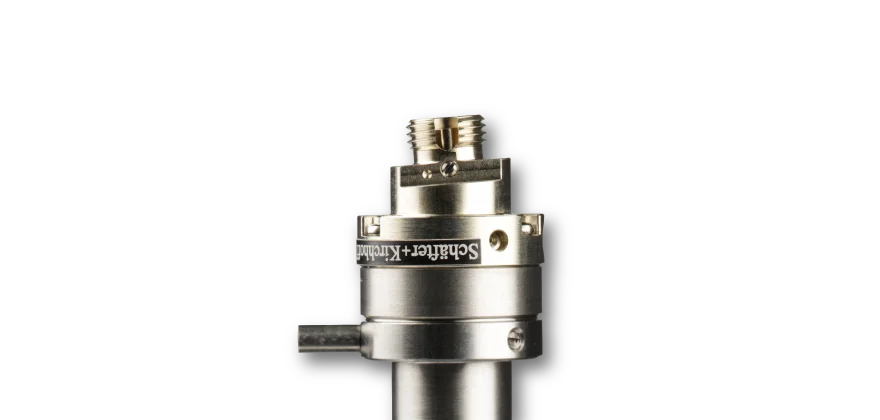

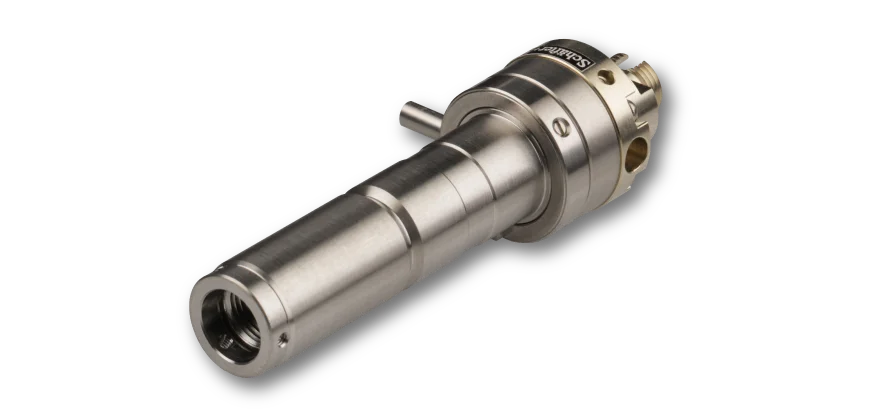

Fiber Coupler compatible with kinematix® optomechanics

60FC-K-4-M11-18
60FC-K-4-M11-18
60FC-K-4-M11-18
60FC-K-4-M11-18
60FC-K-4-M11-18

Features

Fiber coupler is compatible with the kinematix® optomechanics, that can be used for coupling into single-mode or polarization-maintaining fiber cables or as a fiber collimator.
  • Focal length 11 mm
  • Optics type: Doublet optics, Achromatic
  • AR-Coating: 520 - 830 nm
  • Inclined coupling axis, FC-APC connection
  • Compatible with kinematix® optomechanics

Description

The fiber collimators series 60FC-K is is compatible with the kinematix® optomechanics, that can be used for coupling into single-mode or polarization-maintaining fiber cables or as a fiber collimator. They are suitable for single-mode and polarization-maintaining fiber cables leading to collimated beams with a Gaussian intensity profile. Please note that for multimode collimation the intensity profile is not Gaussian and depends on certain fiber and radiation properties.
The features of the coupler type 60FC-K include:

Optics
The achromat with focal length 11 mm is designed for collimating multiple wavelengths. It is AR-coated from 520 - 830 nm. It is corrected for spherical aberrations and designed in such a way that it leads to a diffraction-limited beam with an M2 < 1.05. Additionally it is corrected for chromatic aberration so that there are certain wavelengths or wavelength ranges where the focal length does not vary significantly. It is not suitable for UHV applications.

Adjustment of focus
The distance between fiber end-face and collimating optics is adjusted by means of an eccentric key. The lens does not rotate when adjusting the focus. The final focus setting is locked by means of two radially arranged clamping screws.

Optimum lens performance
The angled polish of connectors of type APC is considered by a pre-angled mechanical coupling axis that compensates the beam deflection and you can use the lens centrically. This minimizes aberrations simply resulting from a non-ideal beam path through the lens.

Connector Type
The fiber collimator is equipped with a FC-APC type receptacle. Because of the spring-loaded fiber ferrule the fiber collimator has an additional grub screw to increase pointing stability.

Material
The fiber collimator type 60FC-K is made from nickel silver/stahl (standard)

Mounting
The fiber coupler needs to be placed into kinematix® optomechanics (not included) in order to be used as in or outcouplers.

Technical data

60FC-K-4-M11-18

Series
60FC-K
Order Code
60FC-K-4-M11-18
Focal length
11 mm
AR coating
18
Wavelength range
520 - 830 nm
Lens type
Doublet optics
Correction
Achromatic
Numerical aperture
0.23
Clear aperture
5.2 mm
Connector type
FC-APC
Outer diameter
Ø 12 mm
Length
63.8 mm
Tilt adjustment
No
Housing material
Nickel silver/Stahl
Weight
49 g
UHV compatible
No
Suitable for multimode
Yes
Note
Dimensions (for a complete dimensional drawing please refer to the downloads section)

Downloads

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

9D-12
Screwdriver WS 1.2
60EX-4
Eccentric key with a stroke of ± 0.5 mm.
