Beam Splitters 48BM-CC

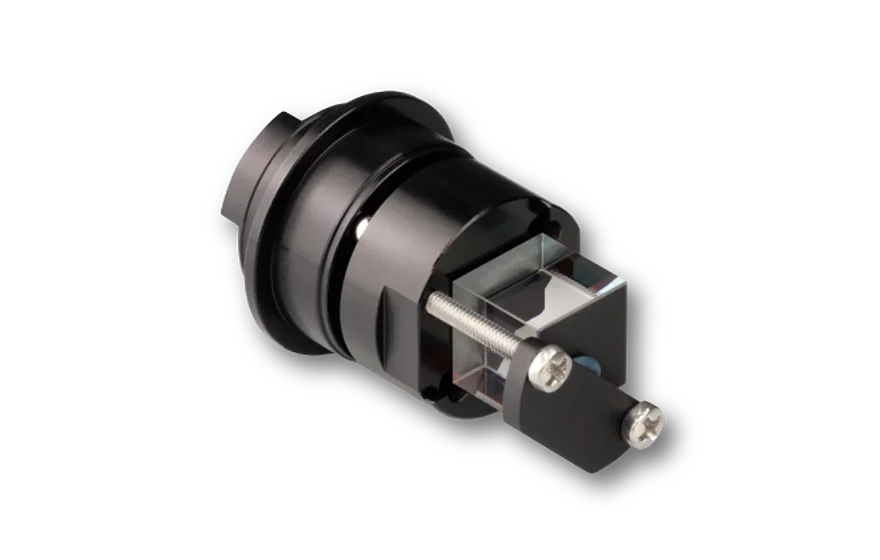

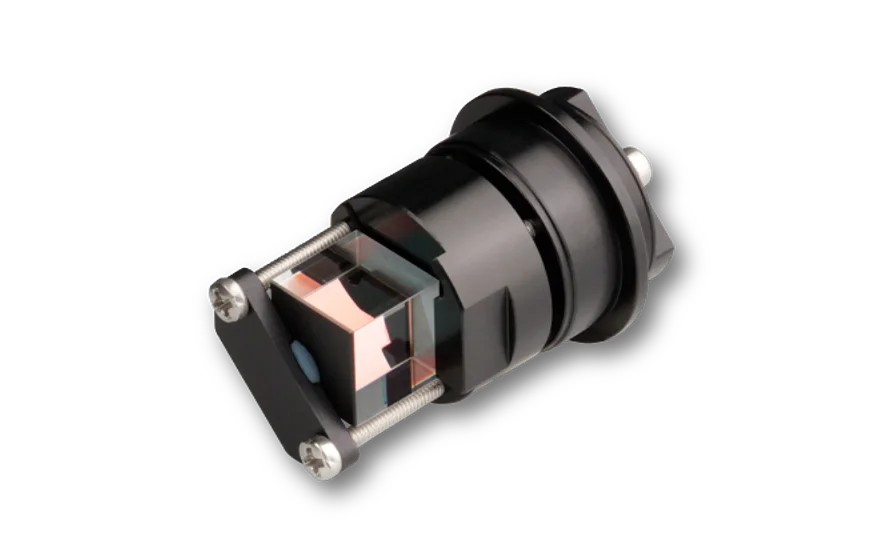

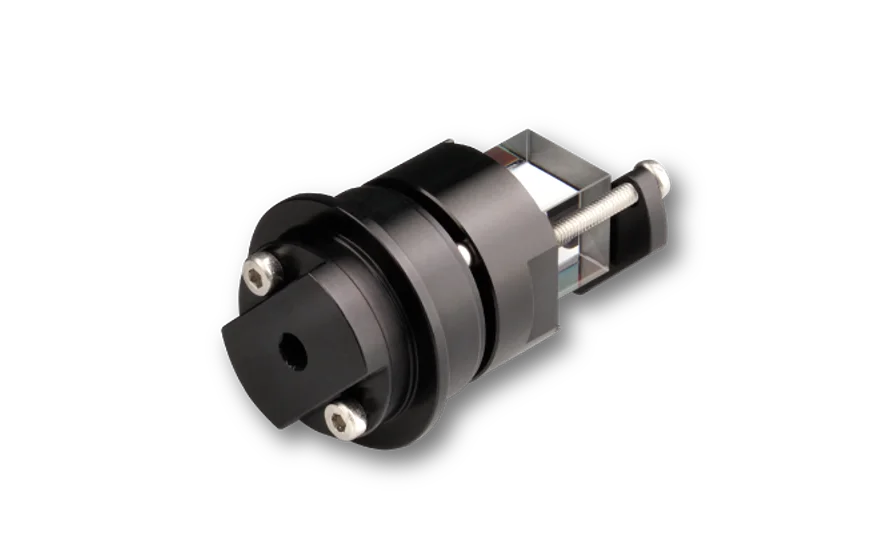

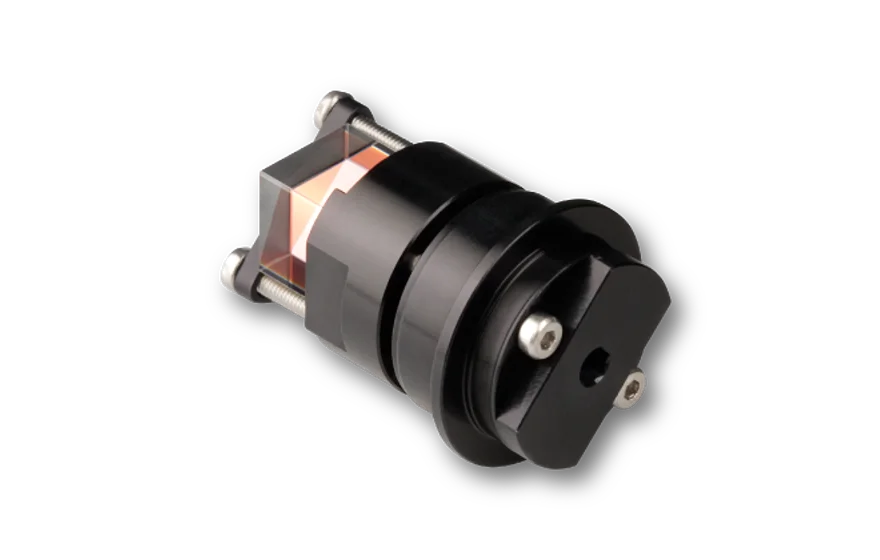

Beam splitting cube, in adjustment mount

48BM-CC

Features

The beam splitters 48BM-CC are polarization-independent cube beam splitters. They have an adjustable mount and are designed to be integrated into the multicube system.

Beam splitting cube
Polarization independent
Splitting ratio 50 : 50
Clear aperture up to 7 mm
Reflection angle 90°
Broadband AR coating
In adjustable mount
Shipped with clamp collar

Order Options

Order Code	Series	Wavelength Range	Splitting Ratio	Clear Aperture
48BM-CC-A	48BM-CC	400 - 700 nm	50 : 50	Ø 7 mm
48BM-CC-B	48BM-CC	750 - 1100 nm	50 : 50	Ø 7 mm
48BM-CC-C	48BM-CC	1100 - 1700 nm	50 : 50	Ø 7 mm
