Dichroic Half-wave Plate 48WP-2-x-1-x

The half-wave plate rotates the polarization direction of a linearly polarized input beam of one single wavelength and not the other

Multicube_48WP

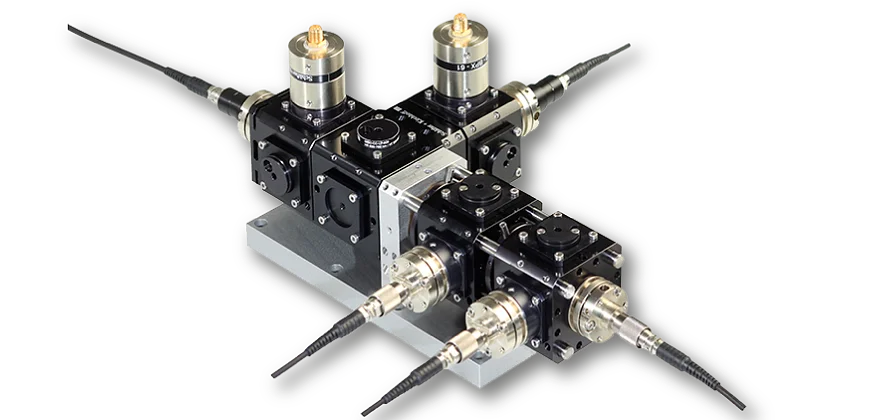

Representative product images. Individual product images are found on the individual product pages.

Features

The dichroic retardation plate (also known as waveplates or retarder plates) are λ/2 plates for one wavelength and do not affect the polarization of the other wavelength. The correctly positioned plate rotates two orthogonally polarized input beams of different wave lengths into linear polarization states in parallel. The dichroic retardation plates have a rotary mount and are designed to be integrated into the multicube system e.g. in dichroic Fiber Port Clusters.

Quartz plate, multiple order
Retardation λ/2 for one wavelength
Retardation λ/1 for the other wavelength (polarization is not affected)
For various wavelengths UV-IR
Clear aperture 5 mm
In adjustable mount with self-locking tubular axis (0 - 360°)
Rotation around axis that is inclined 2° with respect to the optical axis. This avoids interference and back-reflection
System mount Ø 19.5 mm
Adjustable using Schäfter+Kirchhoff Polarization Analyzer series SK010PA.

Order Options

Order Code	Series	Retardation	Wavelength	Unaffected Wavelength	System Mount
48WP-2-378-1-404	48WP	λ/2	378 nm	404 nm	Ø 19.5 mm
48WP-2-404-1-394	48WP	λ/2	404 nm	394 nm	Ø 19.5 mm
48WP-2-628-1-606	48WP	λ/2	628 nm	606 nm	Ø 19.5 mm
48WP-2-717-1-707	48WP	λ/2	717 nm	707 nm	Ø 19.5 mm
48WP-2-780-1-767	48WP	λ/2	780 nm	767 nm	Ø 19.5 mm
48WP-2-780-1-795	48WP	λ/2	780 nm	795 nm	Ø 19.5 mm

Downloads

980210090404.pdf (Dimensional drawing)

980210000404.stp (STEP model)

980210000404.stp (STEP model, for registered users only)

Benefits of user registration include

Extended information for download including stepfiles, software or manuals
Direct download of user-specific downloads (e.g. user-specific software)
Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
Stored item list

Click here to register.

Accessories

Polarization Analyzer SK010PA

Measurement tool for coupling into polarization-maintaining fiber cables
